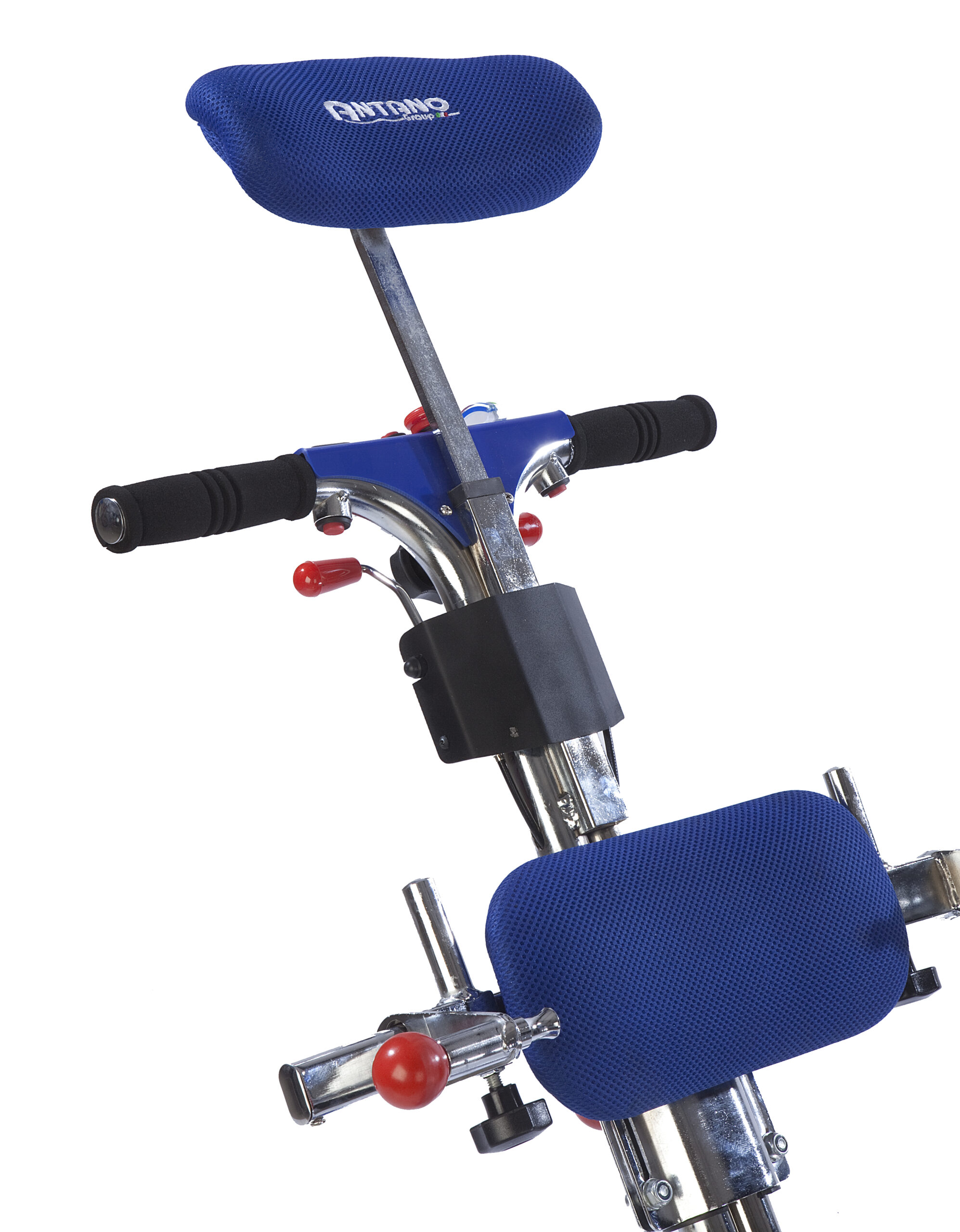

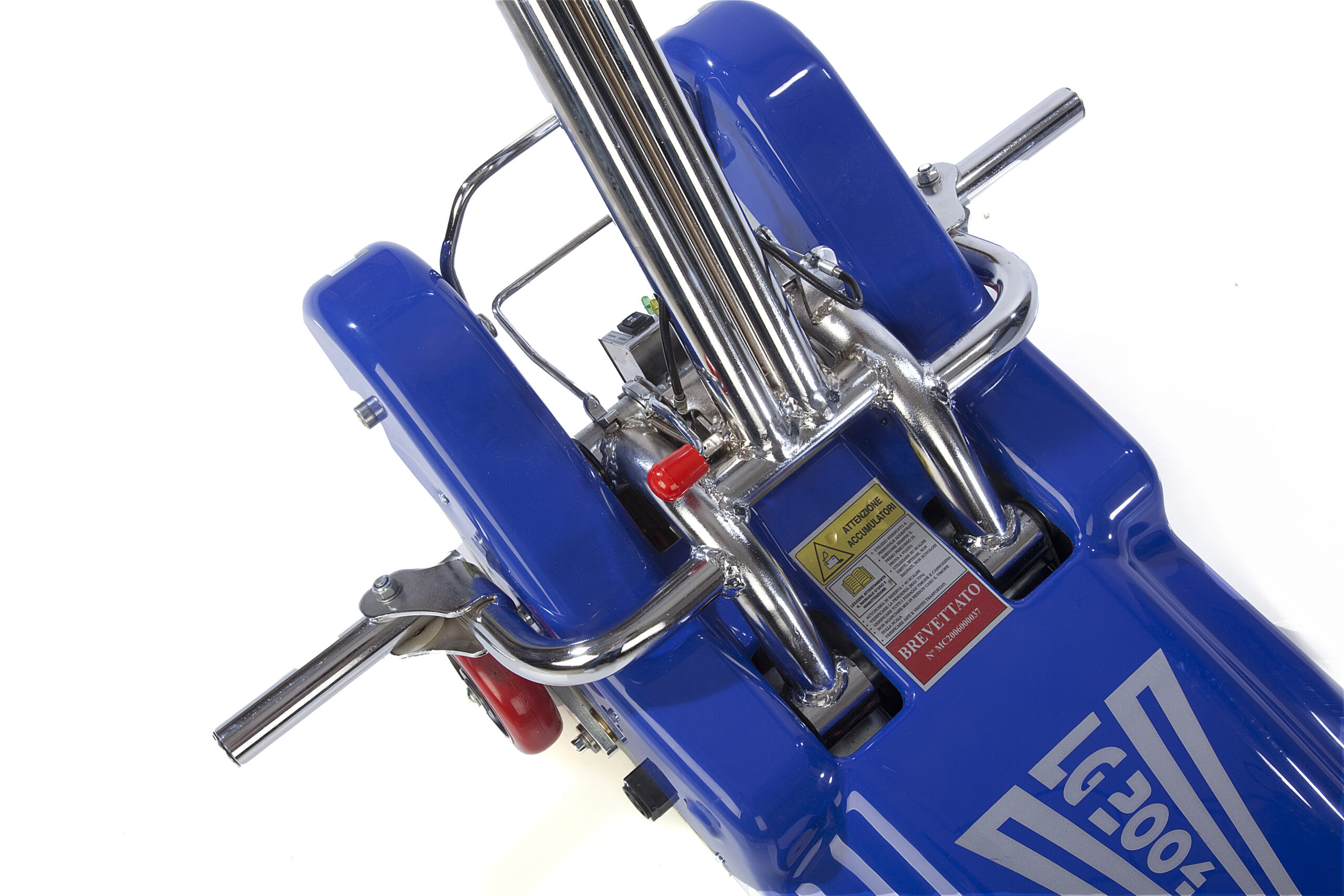

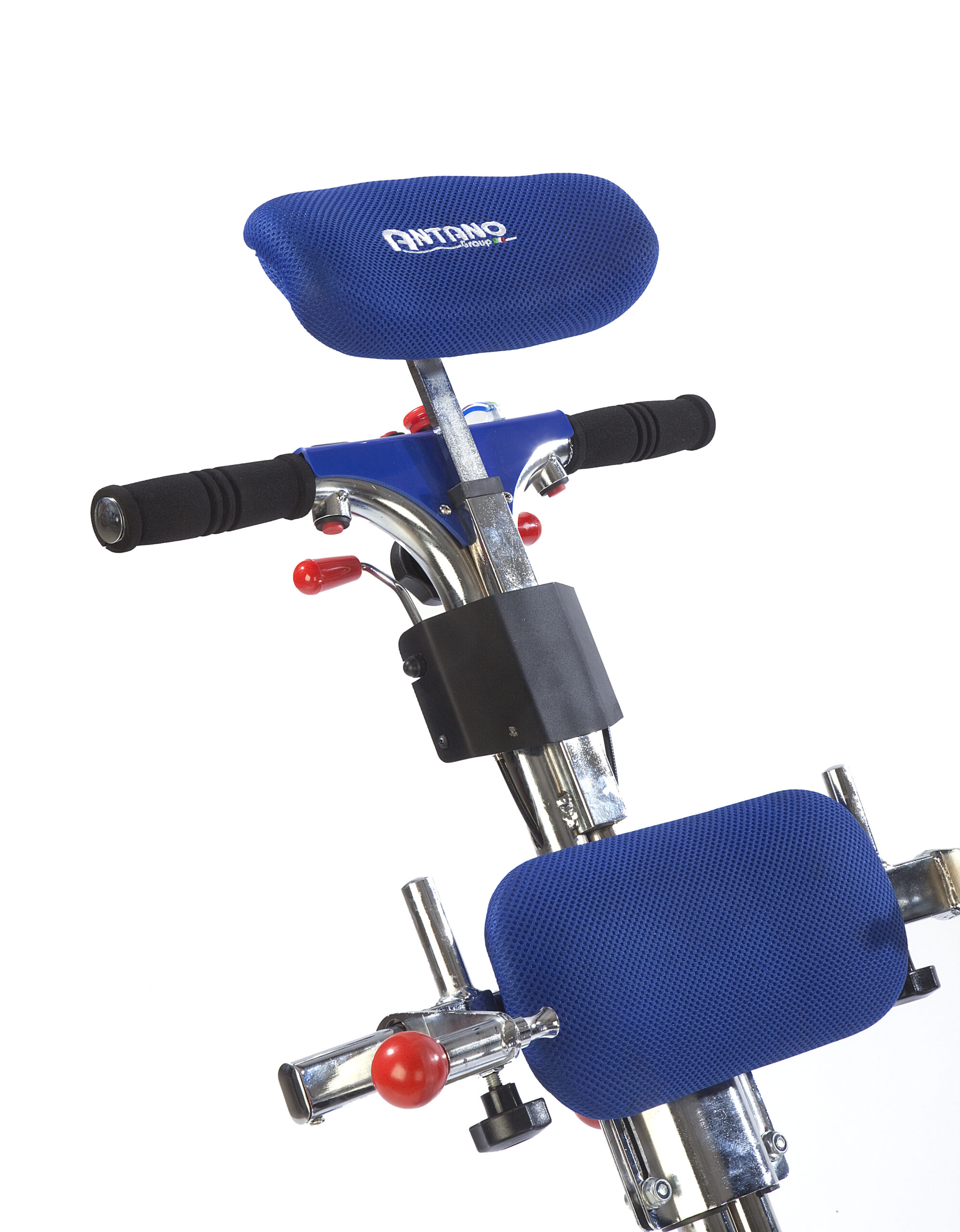

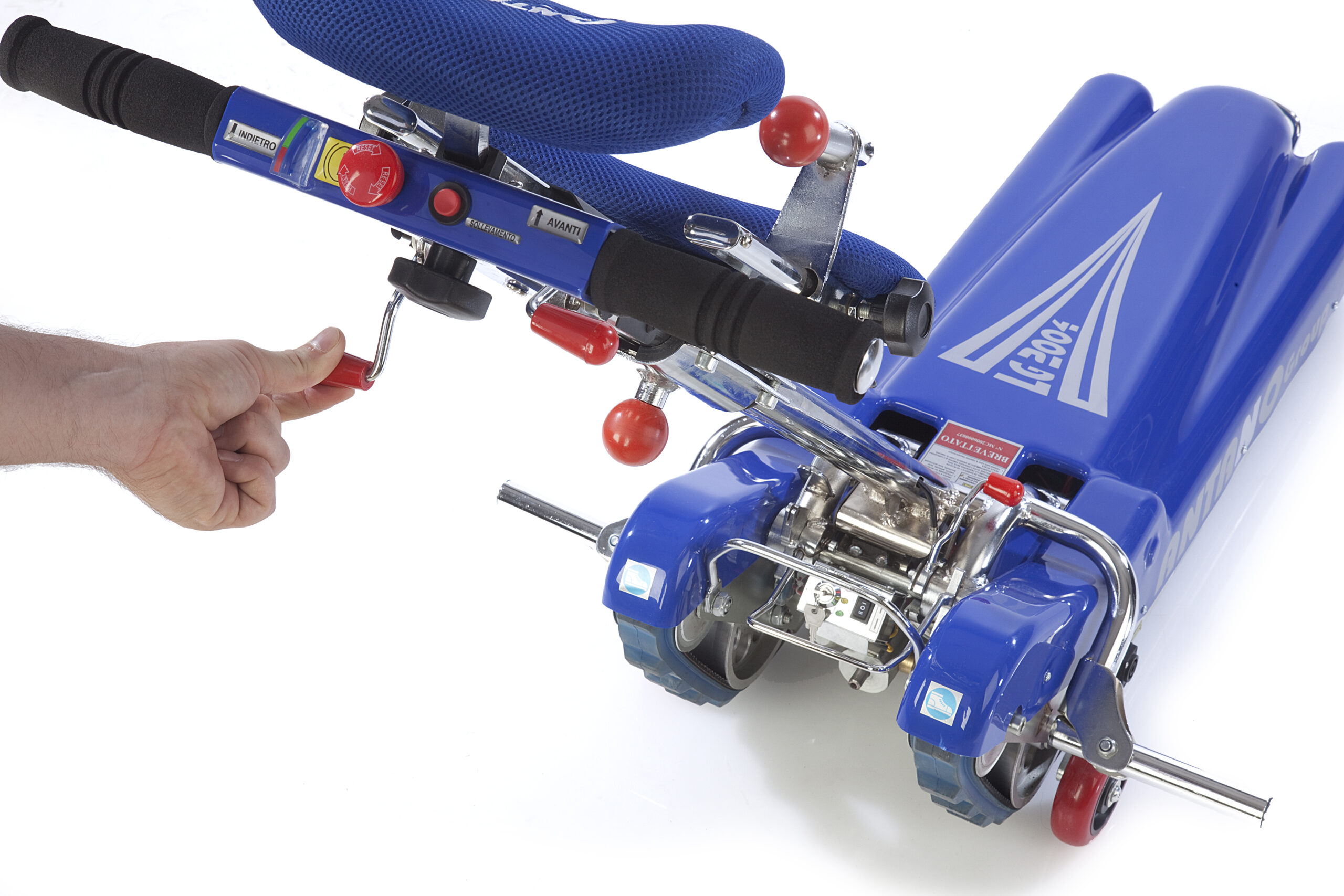

LG 2004 is a very popular stairclimber, appreciated by users in Poland. It was designed by Italian engineers utilizing the latest technologies. Thanks to its foldable brackets for wheelchair’s immobilization, LG 2004 takes less space during storage. It is possible to attach or to detach wheelchair from the device’s steering rod, without need to bend down. The device is equipped with innovative, retractable maneuvering wheel, which eliminates 2 wheel balancing necessity with the product on flat surfaces (so typical for competitive stairclimbers). The device is additionally equipped with safety hip belt with car-style buckle, height adjustable headrest, indicator of stairs’ safe angle and an emergency STOP button.

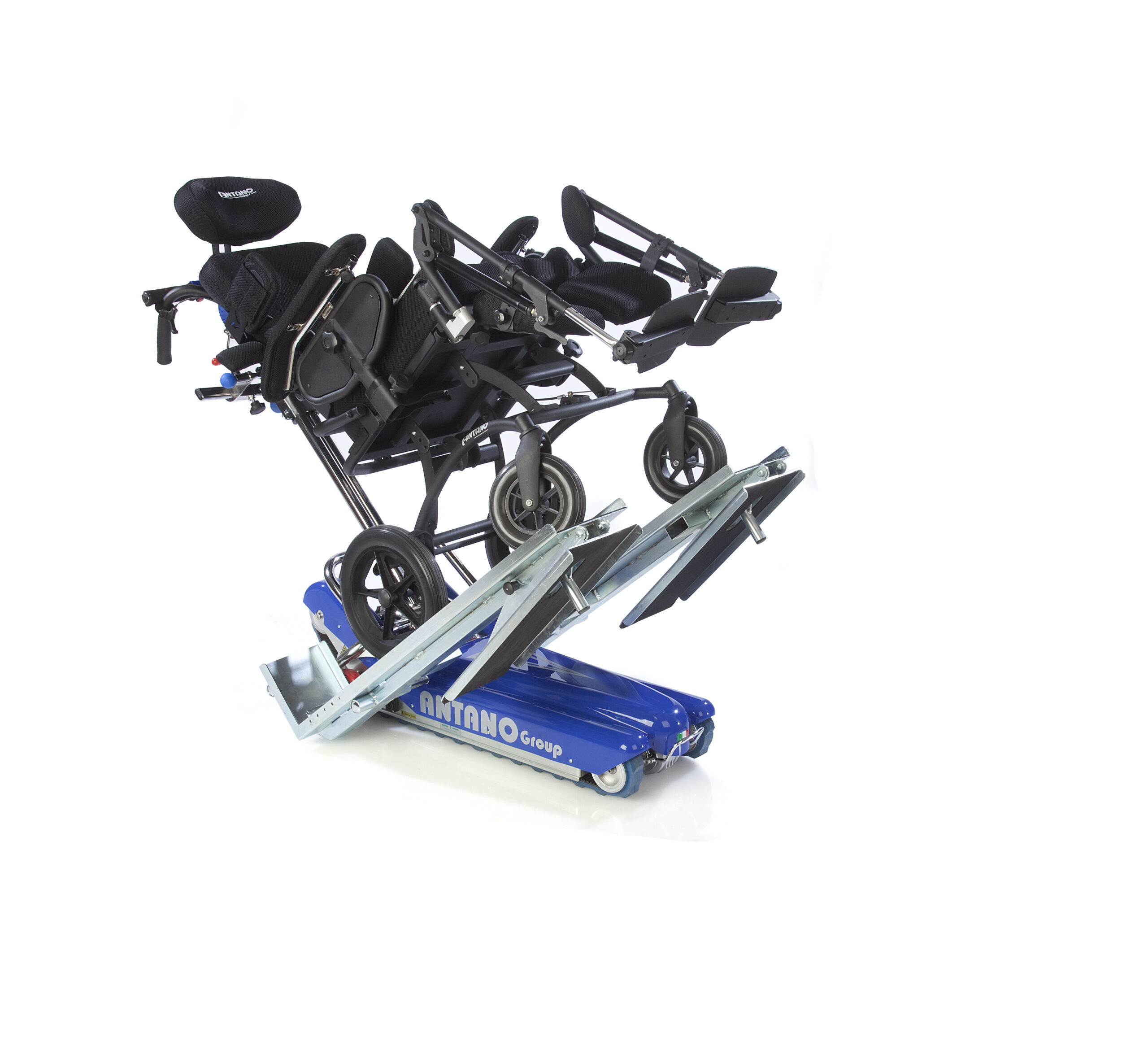

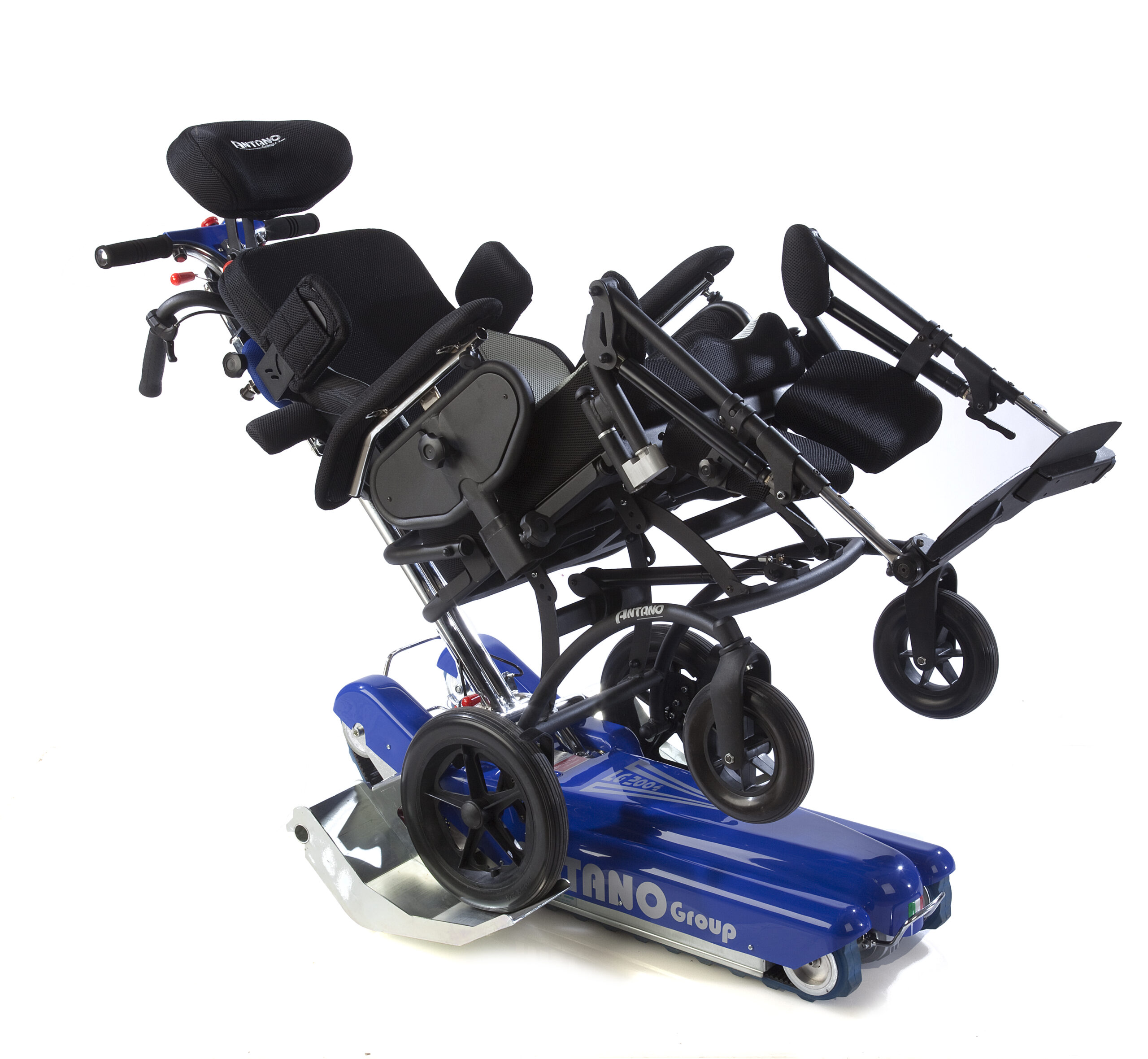

Optional equipment includes: assembly platform for power wheelchairs or multifunctional wheelchairs, anti-tipping support, assembly brackets for extra-large wheelchairs etc.
LG 2004 caterpillar stairclimber
LG 2004 stairclimber is also available in simplified, basic version without an optional possibility of power/special wheelchair platform installation.
Check out the differences between LG 2004 & LG 2004 (Basic):
Check out the differences between LG 2004 & LG 2004 (Basic):
Zależność kąta pochylenia względem wysokości, głębokości schodów
| Overall weight | 58 kg |
| – weight of the base module | 46 kg |
| – weight of the upper frame | 12 kg |
| Max. load | 130 kg (optionally 150 kg – 160 kg) |
| Motor power (traction + lifting) | 300W+40W |
| Overall dimensions | 144x67x99 cm |
| Min. width of stairs | 77 cm |
| Min. dimensions of maneuvering platform (L shaped) | 98×98 cm |
| Min. dimensions of maneuvering platform (U shaped) | 98×170 cm |
| Max. angle of stairs | 70% = (35°) |
| Max. speed (with fully charged batteries) | 15 stairs/minute |
| Batteries (x2) | 12V. 27A/h |
| Charging power parameters | 100+240V; 50-60Hz |
| Average range on fully charged batteries | 80 kg – 27 floors 130 kg – 22 floors |
| Range on reserve | 4 floors |
| Charging time | 8 hours |
| Storage temperature (in boxes, in dry spot) | -10 – 50°C |
| Safe usage temperature range | 0-40°C |
| Dimensions of the box | 116x60x43 cm |
| Overall weight of packed up device | 75 kg |
| Noise level | < 70 dB |
| Vibration level on push handles | <2,5 m/s |
| Vibration level on body shroud | < 0,5 m/s |
| LG 2004 | LG 2004 (Basic) | |
|---|---|---|
| Weight of the rod | 12 kg | 9 kg |
| Overall weight | 58 kg | 44 kg |
| Caterpillar directional wheels | Aluminum | Composite |
| Maneuvering wheels | Standard | No |
| Charging socket location | Right side of base module | Rear side of base module |
| Headrest | Attached with adjustable bracket | Attached with velcro |
| Assembly system of the steering rod | Upper and lower end of the rod – additional levers | Lower part of the rod – no additional levers |
| Assembly system of a wheelchair | Foldable | Rigid, non-foldable |
Zależność kąta pochylenia względem wysokości, głębokości schodów
